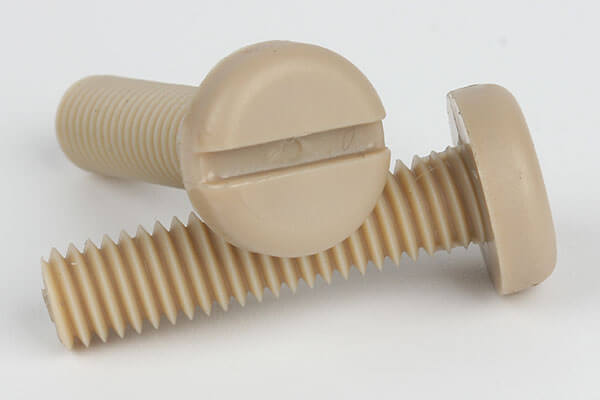

PEEK Slotted Pan Head Screw
PEEK slotted pan head screw is a high-performance thermoplastic fastener designed for precision engineering applications requiring insulation, corrosion resistance, and lightweight structural performance. The PEEK slotted pan head screw is manufactured from polyether ether ketone (PEEK), a premium high-temperature polymer widely used in aerospace, medical, semiconductor, and electronic industries.
The PEEK slotted pan head screw combines a rounded pan head design with a slotted drive, providing easy manual installation and reliable clamping force without damaging sensitive components. It is an ideal alternative to metal screws in environments where conductivity, corrosion, or weight reduction is critical.
Product Overview
The PEEK slotted pan head screw is engineered for applications requiring stable fastening in chemically aggressive, high-temperature, or electrically sensitive environments. Its pan head design increases contact area, improving load distribution and reducing surface stress on assembled components.
This PEEK slotted pan head screw is widely used in precision equipment, electronic assemblies, and industrial systems where metal fasteners may cause interference or corrosion. Its non-metallic structure ensures long-term stability in demanding environments.
As a specialized industrial fastener, it supports OEM manufacturers and high-end engineering industries requiring lightweight and high-performance fastening solutions.
Product Specifications
| Item | Description |
|---|---|
| Product Name | PEEK Slotted Pan Head Screw |
| Material | PEEK (Polyether Ether Ketone) |
| Head Type | Pan Head |
| Drive Type | Slotted |
| Thread Type | Metric / UNC / Custom |
| Diameter Range | M2–M12 |
| Length Range | 4mm–80mm |
| Color | Natural Beige / Black (optional) |
| Density | ~1.30 g/cm³ |
| Operating Temperature | -50°C to 260°C |
| Electrical Properties | Excellent insulation |
| Chemical Resistance | Excellent |
| Packaging | Anti-static bag / carton / OEM packaging |
| Customization | Size, thread, color available |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | ~90–100 MPa |
| Flexural Strength | ~140–160 MPa |
| Hardness | Shore D 85–88 |
| Continuous Service Temperature | Up to 260°C |
| Melting Point | ~343°C |
| Dielectric Strength | Excellent insulation performance |
| Water Absorption | <0.1% |
| Chemical Resistance | Strong resistance to acids, oils, solvents |
Materials and Manufacturing Process
The PEEK slotted pan head screw is manufactured using advanced polymer processing techniques to ensure high precision and consistent performance.
- Raw material selection: High-purity PEEK resin
- Injection molding / CNC machining: Formation of pan head structure
- Thread forming: Precision machining or molded threading
- Annealing treatment: Improves dimensional stability
- Surface finishing: Optional polishing for precision applications
- Inspection: Dimensional and mechanical testing
- Cleaning: Contamination-free processing for sensitive industries
- Packaging: Anti-static and moisture-protected packaging
Each PEEK slotted pan head screw is produced under strict quality control to meet industrial-grade performance requirements.
Applications of the Product
The PEEK slotted pan head screw is widely used across advanced industrial sectors:
- Semiconductor manufacturing: Wafer equipment and cleanroom systems
- Medical devices: Diagnostic and surgical instruments
- Aerospace engineering: Lightweight structural assemblies
- Electronics industry: PCB insulation and enclosure fastening
- Chemical processing: Corrosion-resistant equipment
- Automation systems: Precision mechanical assemblies
- Laboratory equipment: Analytical instruments
- Marine applications: Anti-corrosion fastening solutions
Its non-conductive and non-magnetic properties make it ideal for sensitive technical environments.
Why Choose This Product
- Excellent high-temperature resistance up to 260°C
- Outstanding chemical and corrosion resistance
- Lightweight design reduces overall system weight
- Superior electrical insulation performance
- Non-magnetic and non-conductive material
- Stable mechanical properties under load
- Suitable for precision and OEM applications
- Custom sizes and specifications available
- Ideal for advanced engineering systems
The PEEK slotted pan head screw is a premium fastening solution for industries requiring high reliability and material performance.
Why Choose Flybear
Flybear specializes in the manufacturing and supply of high-performance industrial fasteners, including advanced polymer fastening solutions.
- Precision manufacturing capabilities for polymer fasteners
- OEM/ODM customization support
- Stable production for industrial-scale supply
- Strict quality inspection and testing system
- Global export experience in industrial markets
- Engineering support for application design
Flybear serves OEM manufacturers, distributors, and engineering companies with reliable fastening solutions.
Quality Inspection and Control
Quality assurance is implemented throughout the production process:
- Raw material purity testing
- Dimensional accuracy inspection
- Tensile and flexural strength testing
- Thermal resistance verification
- Chemical resistance evaluation
- Thread fit and gauge inspection
- Surface quality control
- Packaging integrity inspection
All processes follow ISO-based quality management standards for consistency and reliability.
Selection Guide
When selecting a PEEK slotted pan head screw, consider:
- Operating temperature requirements
- Chemical exposure conditions
- Electrical insulation needs
- Load-bearing requirements
- Thread size and length
- Assembly environment
Proper selection ensures optimal performance and long service life.
FAQ
1. What is a PEEK screw used for?
It is used in high-performance environments requiring insulation, corrosion resistance, and lightweight design.
2. Is PEEK stronger than plastic?
Yes, PEEK is one of the strongest engineering plastics available.
3. Can it replace metal screws?
Yes, in applications where electrical insulation or corrosion resistance is required.
4. Does it conduct electricity?
No, PEEK is an excellent electrical insulator.
5. Can custom sizes be made?
Yes, Flybear supports full customization of dimensions and specifications.
