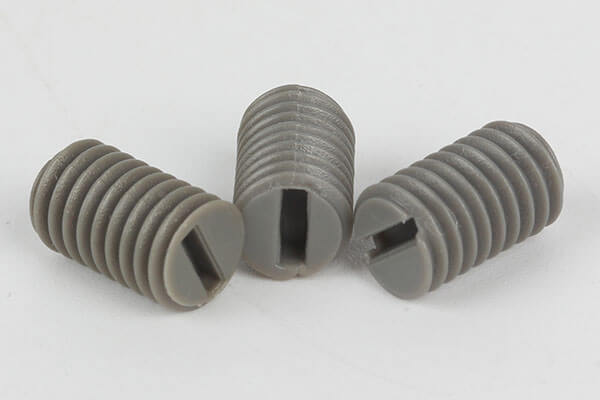

PVC Slotted Flat Point Set Screw
PVC slotted flat point set screw is a non-metallic fastening component designed for light-duty positioning, electrical insulation, and corrosion-resistant locking applications. The PVC slotted flat point set screw features a headless body, a slotted drive, and a flat point tip that provides stable contact while reducing surface damage.
The PVC slotted flat point set screw is widely used in electrical equipment, water treatment systems, plastic assemblies, laboratory instruments, chemical equipment, industrial equipment, and OEM manufacturing where metal fasteners may cause corrosion or conductivity issues.
Product Overview
The PVC slotted flat point set screw is suitable for applications requiring non-conductive and rust-free fastening. Its flat point design applies pressure over a wider contact area, making it useful for positioning plastic parts, light shafts, collars, and adjustment components.
Compared with metal set screws, the PVC slotted flat point set screw offers excellent insulation and corrosion resistance. As a practical industrial fastener, it provides a cost-effective solution for light-load assemblies.
Product Specifications
| Item | Description |
|---|---|
| Standard | DIN / ISO / Custom |
| Product Name | PVC Slotted Flat Point Set Screw |
| Material | PVC |
| Thread Type | Metric Thread / Custom |
| Head Type | Headless Set Screw |
| Drive Type | Slotted |
| Diameter Range | M2–M12 |
| Length Range | 3mm–50mm |
| Surface Finish | Natural / White / Gray / Black |
| Strength Grade | Engineering Plastic Fastener |
| Packaging | Bag, carton, tray, OEM packaging |
| Customization | Size, thread, color, point style, packaging |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | 40–60 MPa |
| Hardness | Shore D 75–85 |
| Density | Approx. 1.35–1.45 g/cm³ |
| Corrosion Resistance | Excellent |
| Operating Temperature | -15°C to 60°C |
| Electrical Insulation | Excellent |
| Thread Tolerance | Custom |
| Manufacturing Standard | DIN / ISO / OEM drawing |
Materials and Manufacturing Process
Production starts with selected PVC material. The resin is prepared, molded, and cooled under controlled conditions. Precision molding forms the thread, slotted drive, and flat point structure.
For custom dimensions, CNC machining may be used. Parts are then trimmed, cleaned, inspected, and packed. Each PVC slotted flat point set screw is checked for thread quality, slot depth, point flatness, dimensions, surface finish, and packaging condition.
Applications of the Product
PVC slotted flat point set screws are used in construction, machinery, automotive electronics, renewable energy systems, petrochemical auxiliary equipment, marine protected equipment, food equipment, industrial equipment, water treatment systems, electrical cabinets, plastic enclosures, and manufacturing systems.
They are suitable for light positioning, adjustment, insulation fixing, and corrosion-sensitive assemblies.
Why Choose This Product
This product offers corrosion resistance, electrical insulation, lightweight performance, non-magnetic properties, stable dimensions, bulk supply capability, OEM/ODM support, fast delivery, and export experience.
Why Choose Flybear
Flybear provides industrial fasteners and engineering plastic fastening solutions.
Flybear supports manufacturing capability, inventory strength, custom production, engineering support, global supply ability, and technical consultation for OEM manufacturers, distributors, EPC contractors, and purchasing managers.
Quality Inspection and Control
Quality inspection includes raw material verification, tensile testing, hardness testing, thread gauge inspection, dimensional inspection, surface inspection, slot inspection, flat point inspection, insulation testing, and packaging inspection.
Production follows ISO quality system compliance for stable batch quality.
Selection Guide
When selecting PVC slotted flat point set screws, consider diameter, length, thread type, contact surface, load requirement, temperature, chemical exposure, indoor or outdoor use, and corrosion level.
For high-temperature or aggressive chemical environments, PVDF or PTFE may be better options.
FAQ
What is a flat point set screw used for?
It is used for positioning and light locking while reducing surface damage.
Why use PVC instead of metal?
PVC provides insulation, corrosion resistance, and non-metallic performance.
Can PVC set screws be used outdoors?
Yes, but prolonged UV exposure and high temperature should be reviewed.
Can custom sizes be produced?
Yes. Custom size, color, thread, point style, and packaging are available.
How to request quotation?
Send size, material, quantity, drawing, and application details.
The PVC slotted flat point set screw provides lightweight, insulated, and corrosion-resistant fastening for light industrial applications. For quotation, customization, and technical support, please Contact Us.
