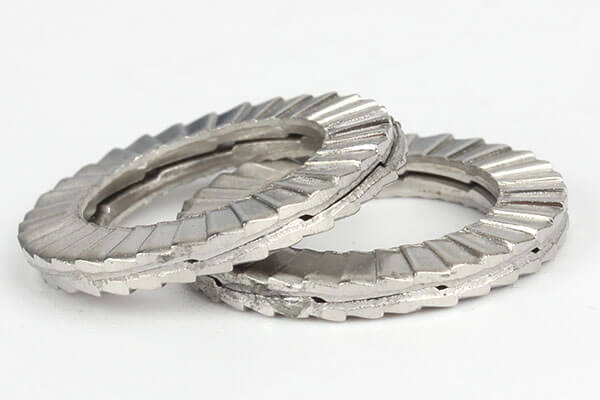

DIN25201 Stainless Steel Wedge Lock Washer
DIN25201 stainless steel wedge lock washer is a precision anti-loosening fastening component designed to maintain bolt preload in high-vibration and dynamic load applications. The DIN25201 stainless steel wedge lock washer uses a double washer wedge locking design to provide reliable mechanical locking performance without depending on friction alone.
Manufactured from corrosion-resistant stainless steel, the DIN25201 stainless steel wedge lock washer combines excellent environmental durability with stable locking capability. It is widely used in automotive systems, railway equipment, industrial machinery, marine applications, renewable energy equipment, and critical bolted assemblies where connection reliability is essential.
Product Overview
The DIN25201 stainless steel wedge lock washer is engineered for fastening applications exposed to vibration, shock, and repeated loading. Unlike traditional locking washers, its wedge locking structure increases clamp force when the joint experiences movement.
The washer pair consists of two matched components with cam surfaces on one side and radial teeth on the opposite side. During installation, the teeth grip the contact surfaces while the wedge effect prevents bolt rotation caused by external vibration.
Available in stainless steel materials such as 304 and 316, the DIN25201 stainless steel wedge lock washer provides excellent corrosion resistance and is suitable for both indoor and demanding outdoor environments.
Product Specifications
| Item | Description |
|---|---|
| Standard | DIN25201 |
| Product Name | Stainless Steel Wedge Lock Washer |
| Material | Stainless Steel |
| Material Options | 304 / 316 Stainless Steel |
| Washer Type | Double Wedge Lock Washer |
| Structure | Two-Piece Locking Washer Assembly |
| Surface Finish | Natural Stainless Steel / Customized |
| Size Range | M3–M42 |
| Inner Diameter | According to DIN25201 Standard |
| Outer Diameter | According to DIN25201 Standard |
| Locking Method | Wedge Locking Principle |
| Installation Type | Bolt and Nut Assembly |
| Packaging | Matched Pair Packaging |
| Customization | Size, material, finish available |
Technical Parameters
| Parameter | Value |
|---|---|
| Material Grade | Stainless Steel |
| Tensile Strength | According to selected grade |
| Yield Strength | According to selected grade |
| Hardness | Controlled for locking performance |
| Density | Approx. 7.9 g/cm³ |
| Corrosion Resistance | Excellent |
| Fatigue Resistance | Good |
| Vibration Resistance | Excellent |
| Manufacturing Standard | DIN25201 |
Materials and Manufacturing Process
The DIN25201 stainless steel wedge lock washer is manufactured through precision forming and stainless steel processing to achieve accurate geometry and consistent locking performance.
- Raw material selection: High-quality stainless steel strip
- Precision stamping: Formation of wedge-shaped cam surfaces and radial teeth
- Pair matching: Ensures correct washer combination and installation performance
- Heat treatment: Applied when required to improve mechanical properties
- Surface finishing: Cleaning and passivation treatment
- Inspection: Dimensional accuracy, hardness, and locking performance testing
- Packaging: Paired packaging to prevent incorrect assembly
Each DIN25201 stainless steel wedge lock washer is produced under strict quality control to ensure reliable fastening performance.
Applications of the Product
The DIN25201 stainless steel wedge lock washer is widely used in industries requiring secure fastening:
- Automotive industry: Engine, chassis, and structural components
- Railway systems: High-vibration fastening applications
- Marine equipment: Corrosion-resistant mechanical connections
- Wind energy: Tower and equipment assemblies
- Construction machinery: Heavy-duty equipment joints
- Industrial machinery: Motors, pumps, and gear systems
- Automation equipment: Precision mechanical assemblies
- Outdoor equipment: Weather-resistant fastening solutions
Its wedge locking mechanism provides dependable performance in applications where bolt loosening must be minimized.
Why Choose This Product
- DIN25201 standard design
- Reliable wedge locking performance
- Suitable for vibration and shock conditions
- Stainless steel provides corrosion resistance
- Maintains bolt preload stability
- Reduces maintenance requirements
- Available in 304 and 316 materials
- Suitable for critical fastening applications
- OEM customization support
The DIN25201 stainless steel wedge lock washer provides a secure and durable solution for high-reliability bolted connections.
Why Choose Flybear
Flybear is a professional manufacturer specializing in industrial fasteners and customized fastening solutions.
- Advanced stainless steel forming capability
- Experience producing locking washer systems
- OEM/ODM customization support
- Stable manufacturing capacity for bulk supply
- Strict quality inspection procedures
- Global export experience
- Engineering support for customized applications
Flybear provides reliable fastening products for automotive, machinery, energy, marine, and industrial customers worldwide.
Quality Inspection and Control
Quality control is maintained throughout the production process:
- Stainless steel chemical composition analysis
- Raw material certificate verification
- Washer dimension inspection
- Cam angle and tooth profile inspection
- Hardness testing
- Surface quality inspection
- Locking performance testing
- Packaging inspection
All manufacturing processes follow ISO-based quality management systems to ensure consistent product reliability.
Selection Guide
When selecting a DIN25201 stainless steel wedge lock washer, consider:
- Bolt size and strength grade
- Vibration intensity of the application
- Required corrosion resistance
- Installation environment
- Connected material compatibility
- Required locking reliability
Selecting the correct material and size ensures long-term fastening performance.
FAQ
1. What is a DIN25201 stainless steel wedge lock washer?
It is a locking washer system designed to prevent bolt loosening under vibration and dynamic loads.
2. How does a wedge lock washer work?
It uses cam surfaces and wedge action to increase joint tension when external forces attempt to loosen the bolt.
3. What stainless steel grades are available?
Common options include 304 and 316 stainless steel.
4. Can custom DIN25201 wedge lock washers be produced?
Yes, Flybear supports customized sizes, materials, and surface requirements.
5. Are stainless steel wedge lock washers suitable for outdoor applications?
Yes, stainless steel versions provide excellent corrosion resistance for many outdoor environments.
