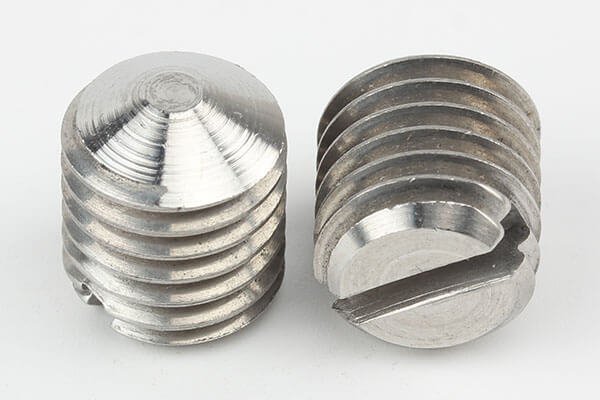

Stainless Steel Cone Point Slotted Set Screw
Stainless steel cone point slotted set screw is a precision locking fastener designed for securing components in mechanical assemblies where axial positioning, vibration resistance, and firm contact pressure are required. The stainless steel cone point slotted set screw features a pointed cone tip and slotted drive, allowing it to tightly engage into a mating surface or pre-drilled dimple for secure positioning.
This stainless steel cone point slotted set screw is widely used in machinery equipment, shaft locking systems, instrumentation, gear assemblies, and industrial mechanical structures where reliable anti-movement performance is essential.
Product Overview
The stainless steel cone point slotted set screw is designed to apply concentrated pressure at the contact point, ensuring strong locking between components such as shafts, collars, and mechanical joints. The cone-shaped tip increases holding force and improves positional accuracy.
This stainless steel cone point slotted set screw is especially suitable for precision mechanical systems requiring stable alignment and resistance to loosening under vibration or load.
As a reliable industrial fastener, it is widely used in equipment requiring accurate positioning and repeated assembly.
Product Specifications
| Item | Description |
|---|---|
| Product Name | Stainless Steel Cone Point Slotted Set Screw |
| Material | Stainless Steel (A2 / A4 optional) |
| Screw Type | Set Screw (Grub Screw) |
| Tip Type | Cone Point |
| Drive Type | Slotted |
| Thread Type | Metric Fine / Coarse Thread |
| Size Range | M3–M20 |
| Length Range | 3mm–80mm |
| Surface Finish | Natural / Passivated |
| Corrosion Resistance | High (A4 better for marine use) |
| Thread Tolerance | 6g Standard |
| Packaging | Bulk / box / OEM packaging |
| Customization | Size, material, tip type available |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | 500–700 MPa (A2 stainless) |
| Yield Strength | 200–450 MPa |
| Hardness | HV 150–250 |
| Density | 7.93 g/cm³ |
| Corrosion Resistance | High (excellent in humid environments) |
| Operating Temperature | -50°C to 400°C |
| Torque Resistance | Medium to high (depending on size) |
| Manufacturing Standard | DIN / ISO equivalent |
Materials and Manufacturing Process
The stainless steel cone point slotted set screw is manufactured using precision machining and threading processes to ensure accurate tip geometry and stable performance.
- Raw material selection: Stainless steel wire or bar (A2 / A4)
- Cold heading: Screw blank forming
- Tip machining: Cone point precision shaping
- Thread rolling: High-accuracy external threading
- Slot cutting: Slotted drive machining
- Surface finishing: Passivation for corrosion resistance
- Cleaning: Oil-free treatment
- Inspection: Dimensional and tip geometry testing
- Packaging: Protective export packaging
Each stainless steel cone point slotted set screw is produced under strict quality control to ensure reliable locking performance.
Applications of the Product
Stainless steel cone point slotted set screws are widely used in:
- Machinery equipment: Shaft locking and positioning
- Gear assemblies: Precise mechanical alignment
- Instrumentation: Calibration and adjustment systems
- Automotive systems: Mechanical fixation components
- Industrial automation: Positioning and locking parts
- Electrical equipment: Structural fixing applications
- Precision devices: Micro-mechanical assemblies
- Maintenance systems: Adjustable locking mechanisms
Their cone tip design provides strong point contact for secure fastening.
Why Choose This Product
- Cone point design for strong locking force
- Excellent positioning accuracy for mechanical systems
- Stainless steel corrosion resistance
- Suitable for vibration environments
- Compact design for precision assemblies
- Available in A2 and A4 stainless grades
- Compatible with standard slotted tools
- OEM customization support available
- Widely used industrial standard component
The stainless steel cone point slotted set screw ensures stable and precise mechanical locking performance.
Why Choose Flybear
Flybear is a professional manufacturer specializing in stainless steel and industrial precision fasteners.
- Advanced cold heading and precision machining capability
- Stainless steel A2 / A4 material expertise
- OEM customization for industrial applications
- Strict quality inspection and testing systems
- Global export experience in fastener manufacturing
- Engineering support for mechanical applications
Flybear provides reliable fastening solutions for machinery, instrumentation, automotive, and industrial sectors.
Quality Inspection and Control
Strict quality control ensures consistent performance:
- Raw material chemical composition testing
- Dimensional accuracy inspection
- Tip geometry verification
- Thread gauge testing
- Hardness testing
- Corrosion resistance testing (salt spray)
- Slot integrity inspection
- Packaging quality verification
All production follows ISO quality management standards.
Selection Guide
When selecting stainless steel cone point slotted set screws, consider:
- Shaft or surface hardness compatibility
- Required locking strength
- Size and thread specification
- Corrosion environment level
- Vibration conditions
- Installation tool compatibility
Proper selection ensures reliable locking performance.
FAQ
1. What is a cone point set screw used for?
It is used for precise positioning and locking of mechanical components.
2. Why use stainless steel?
It provides excellent corrosion resistance and durability.
3. What is the advantage of cone point?
It provides strong point contact for secure locking.
4. Can it be reused?
Yes, if the tip and threads are not damaged.
5. Can custom sizes be produced?
Yes, Flybear supports full customization.
We always adhere to the philosophy of quality first and customer first, providing customers with high-quality fastener products and one-stop fastener solutions.
Contact us for quotation, customization, and technical support via Contact Us.
