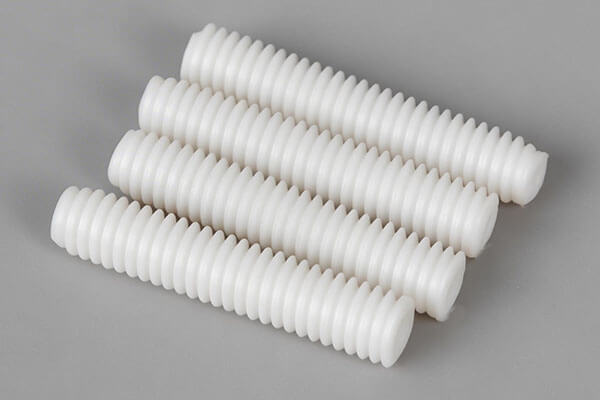

PTFE Slotted Flat Point Set Screw
PTFE slotted flat point set screw is a high-performance fluoropolymer headless fastener designed for precision positioning, locking, and adjustment in extreme chemical and high-purity environments. The PTFE slotted flat point set screw is manufactured from virgin polytetrafluoroethylene (PTFE), offering outstanding chemical resistance, excellent electrical insulation, ultra-low friction, and long-term stability under harsh industrial conditions.
The PTFE slotted flat point set screw features a headless cylindrical body with a straight slotted drive and a flat point tip. This structure allows the screw to apply uniform pressure on contact surfaces while minimizing damage to mating components. It is widely used in semiconductor equipment, chemical processing systems, pharmaceutical machinery, laboratory instruments, water treatment systems, food-grade equipment, marine engineering, and OEM industrial assemblies.
Product Overview
The PTFE slotted flat point set screw is engineered for applications requiring non-metallic fastening with precise adjustment capability. The flat point design provides stable contact without sharp indentation, making it suitable for positioning shafts, collars, guide rails, and sensitive components.
Compared with PVC, PA66, and PVDF set screws, the PTFE slotted flat point set screw delivers superior chemical resistance, temperature tolerance, and non-stick performance. It is especially suitable for environments involving strong acids, strong alkalis, organic solvents, and ultra-pure media.
As a premium industrial fastener, it ensures reliable performance in corrosive, cleanroom, and electrically sensitive applications.
Product Specifications
| Item | Description |
|---|---|
| Standard | DIN 551 / ISO Equivalent / Custom |
| Product Name | PTFE Slotted Flat Point Set Screw |
| Material | Virgin PTFE |
| Thread Type | Metric Thread / Custom |
| Head Type | Headless Set Screw |
| Drive Type | Slotted Drive |
| Point Type | Flat Point |
| Diameter Range | M2–M16 |
| Length Range | 3mm–50mm |
| Surface Finish | Natural White |
| Strength Grade | Engineering Plastic Fastener |
| Thread Direction | Right Hand |
| Packaging | Bag, carton, tray, OEM packaging |
| Customization | Size, length, thread, point type, packaging |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | 20–35 MPa |
| Yield Strength | Material dependent |
| Hardness | Shore D 50–65 |
| Density | Approx. 2.15–2.20 g/cm³ |
| Corrosion Resistance | Excellent |
| Operating Temperature | -200°C to 260°C |
| Electrical Insulation | Excellent |
| Manufacturing Standard | DIN / ISO / OEM drawing |
Materials and Manufacturing Process
The PTFE slotted flat point set screw is manufactured using precision compression molding combined with CNC machining to achieve high accuracy and stable performance.
Production begins with virgin PTFE resin, carefully selected for purity and chemical stability. The material is compression molded under controlled temperature and pressure to form a stable blank.
CNC machining is then used to form the threaded body, slotted drive, and flat point tip. Secondary machining ensures tight dimensional control for thread pitch, length, and point geometry.
After machining, each PTFE slotted flat point set screw is cleaned, inspected, and packaged under strict quality control standards to ensure consistent performance.
Applications of the Product
PTFE slotted flat point set screws are widely used in:
- Chemical processing equipment
- Semiconductor manufacturing systems
- Pharmaceutical production
- Laboratory instruments
- Water treatment systems
- Food-grade machinery
- Marine engineering equipment
- Renewable energy systems
- Industrial machinery
- Manufacturing systems
- OEM assemblies
- High-purity fluid systems
They are especially suitable for positioning, alignment, and light locking of shafts, sleeves, guide rails, and precision components.
Why Choose This Product
- Premium virgin PTFE material
- Exceptional chemical resistance
- Ultra-wide temperature range (-200°C to 260°C)
- Excellent electrical insulation
- Ultra-low friction coefficient
- Non-stick surface performance
- No corrosion or contamination
- Lightweight and non-magnetic
- Precise positioning capability
- OEM and ODM customization support
- Bulk supply capability
- Fast global delivery
The PTFE slotted flat point set screw is ideal for highly corrosive, high-purity, and electrically sensitive industrial environments.
Why Choose Flybear
Flybear specializes in manufacturing industrial fasteners and advanced engineering plastic fastening solutions.
Our advantages include:
- Advanced PTFE precision molding and CNC machining
- Strong production capacity and stable inventory
- OEM and ODM customization based on drawings or samples
- Professional engineering and material selection support
- Global supply capability
- Strict ISO quality management system
- Extensive export experience
- Fast delivery and technical consultation
Flybear provides reliable fastening solutions for OEM manufacturers, distributors, EPC contractors, and industrial buyers worldwide.
Quality Inspection and Control
Each production batch undergoes strict inspection, including:
- Raw material purity verification
- Dimensional inspection
- Thread gauge inspection
- Slotted drive inspection
- Flat point geometry inspection
- Tensile strength testing
- Chemical resistance verification
- Surface quality inspection
- Packaging inspection
All processes comply with ISO quality management standards to ensure stable and reliable performance.
Selection Guide
When selecting PTFE slotted flat point set screws, consider:
- Thread diameter and length
- Required positioning force
- Chemical exposure type and concentration
- Operating temperature range
- Contact surface hardness
- Installation environment (cleanroom or industrial)
- Matching component material
For higher mechanical strength requirements, PVDF or PEEK materials may be more suitable depending on application conditions.
FAQ
1. What is a flat point set screw used for?
It is used for positioning and light locking while minimizing damage to the contact surface.
2. Why choose PTFE instead of metal or plastic screws?
PTFE provides superior chemical resistance, insulation, and extremely low friction, ideal for harsh environments.
3. Can PTFE set screws withstand high temperatures?
Yes. PTFE operates continuously from -200°C to 260°C.
4. Can custom sizes be produced?
Yes. Flybear supports OEM/ODM production for customized dimensions, drawings, and packaging.
5. How to request a quotation?
Provide size, quantity, application environment, drawings (if available), and packaging requirements.
The PTFE slotted flat point set screw offers unmatched chemical resistance, precision positioning capability, and long-term stability, making it an ideal fastening solution for semiconductor, chemical processing, pharmaceutical, and high-purity industrial systems.
