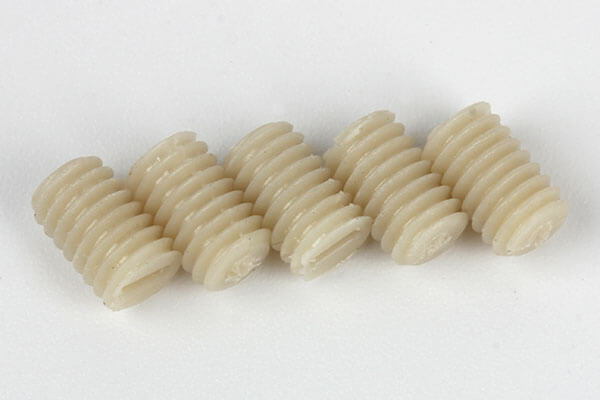

PPS Slotted Set Screw
PPS slotted flat point set screw is a high-performance engineering plastic fastening component designed for precision locking, adjustment, and positioning in industrial assemblies. The PPS slotted set screw is manufactured from polyphenylene sulfide (PPS), a high-performance thermoplastic known for excellent heat resistance, chemical stability, and dimensional reliability.
The PPS slotted set screw features a headless (grub screw) design with a flat point end and slotted drive, allowing controlled pressure distribution and secure positioning without damaging mating components. It is widely used in automotive electronics, electrical systems, industrial equipment, and precision assemblies where metal fasteners may cause corrosion, conductivity, or magnetic interference.
Product Overview
The PPS slotted flat point set screw is engineered for internal fastening applications requiring stable locking force and repeatable adjustment performance. Its flat point design provides a larger contact area compared to cone point or cup point variants, reducing surface damage while maintaining reliable positioning.
This PPS slotted set screw performs consistently in high-temperature and chemically aggressive environments. Unlike metal set screws, it eliminates corrosion risks and electrical conductivity issues, making it suitable for sensitive electronic and industrial systems.
As a specialized industrial fastener, it is widely used in OEM manufacturing where lightweight, non-metallic, and cost-efficient fastening solutions are required.
Product Specifications
| Item | Description |
|---|---|
| Product Name | PPS Slotted Flat Point Set Screw |
| Material | PPS (Polyphenylene Sulfide) |
| Type | Set Screw (Grub Screw) |
| End Type | Flat Point |
| Drive Type | Slotted |
| Thread Type | Metric / UNC / Custom |
| Diameter Range | M2–M12 |
| Length Range | 3mm–50mm |
| Color | Black / Natural |
| Density | ~1.35 g/cm³ |
| Operating Temperature | -40°C to 200°C |
| Electrical Properties | Good insulation |
| Chemical Resistance | Excellent resistance to fuels, acids, solvents |
| Packaging | Anti-static bag / carton / OEM packaging |
| Customization | Size, end type, color available |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | ~80–110 MPa |
| Flexural Strength | High rigidity performance |
| Hardness | Shore D 85–90 |
| Continuous Service Temperature | Up to 200°C |
| Melting Point | ~280–285°C |
| Dielectric Strength | Good insulation performance |
| Water Absorption | Very low |
| Chemical Resistance | Excellent resistance to acids, oils, and fuels |
Materials and Manufacturing Process
The PPS slotted flat point set screw is manufactured using advanced polymer processing techniques to ensure high precision and stable performance.
- Raw material selection: High-quality PPS resin (reinforced or unreinforced)
- Injection molding / CNC machining: Formation of cylindrical set screw body
- Thread forming: Precision molded or machined threads
- End shaping: Flat point machining for controlled contact surface
- Slotted drive machining: Ensures reliable installation
- Annealing treatment: Improves dimensional stability and reduces internal stress
- Inspection: Dimensional and mechanical testing
- Cleaning: Contamination-free processing for industrial applications
- Packaging: Anti-static and moisture-protected packaging
Each PPS slotted set screw is produced under strict quality control to ensure consistent industrial performance.
Applications of the Product
The PPS slotted flat point set screw is widely used across multiple industrial sectors:
- Automotive electronics: Sensor and module locking systems
- Electrical systems: Insulating fastening applications
- Industrial machinery: Positioning and adjustment mechanisms
- Electronics industry: PCB and enclosure internal fastening
- Aerospace applications: Lightweight non-metallic assemblies
- Chemical equipment: Corrosion-resistant components
- Home appliances: Heat-resistant internal structures
- Precision instruments: Alignment and locking systems
Its flat point design makes it suitable for applications requiring controlled pressure without surface damage.
Why Choose This Product
- Excellent heat resistance up to 200°C
- Superior chemical resistance to fuels and solvents
- Flat point design reduces surface damage
- High dimensional stability and rigidity
- Excellent electrical insulation performance
- Non-corrosive and non-metallic structure
- Suitable for precision adjustment applications
- OEM customization available
- Cost-effective engineering plastic solution
The PPS slotted set screw provides a reliable fastening solution for precision industrial applications requiring stability and insulation.
Why Choose Flybear
Flybear is a professional manufacturer specializing in industrial fasteners and engineering plastic components.
- Advanced precision molding and machining capability
- OEM/ODM customization support
- Stable mass production for global supply
- Strict quality inspection system
- Global export experience
- Engineering application support
Flybear supports OEM manufacturers, distributors, and industrial engineering companies with reliable fastening solutions.
Quality Inspection and Control
Quality assurance is strictly implemented throughout production:
- Raw material performance testing
- Dimensional accuracy inspection
- Mechanical strength testing
- Thermal resistance verification
- Chemical resistance evaluation
- Thread and drive inspection
- Surface quality control
- Packaging integrity inspection
All processes follow ISO-based quality management standards to ensure consistent performance.
Selection Guide
When selecting a PPS slotted set screw, consider:
- Required end type (flat point selection)
- Operating temperature range
- Chemical exposure conditions
- Load and torque requirements
- Thread size and length
- Installation precision requirements
Proper selection ensures stable performance and long service life.
FAQ
1. What is a PPS set screw used for?
It is used for internal locking, positioning, and adjustment in precision assemblies.
2. What is a flat point set screw?
It provides a flat contact surface for controlled pressure distribution.
3. Can PPS set screws replace metal ones?
Yes, in applications requiring insulation, corrosion resistance, and lightweight design.
4. What is the temperature resistance of PPS?
Up to approximately 200°C for continuous operation.
5. Can custom specifications be produced?
Yes, Flybear supports full customization.
