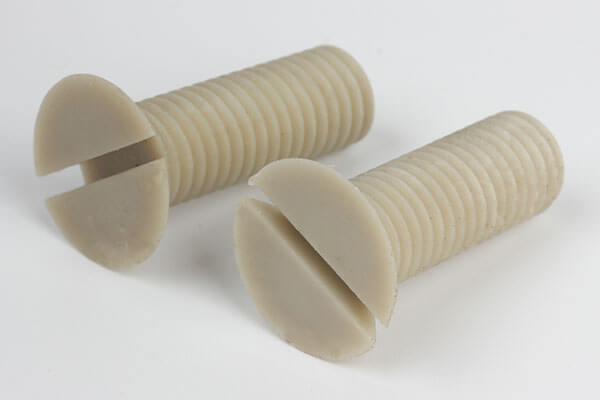

PPS Slotted Countersunk Screw
PPS slotted countersunk screw is a high-performance engineering plastic fastener designed for industrial applications requiring excellent heat resistance, dimensional stability, and chemical resistance. The PPS slotted countersunk screw is manufactured from polyphenylene sulfide (PPS), a high-performance thermoplastic widely used in automotive, electronics, and industrial equipment.
The PPS slotted countersunk screw features a 90° flat head and slotted drive design, allowing flush installation while maintaining good mechanical stability in high-temperature and corrosive environments. It is an ideal alternative to metal fasteners in applications where electrical insulation, corrosion resistance, and lightweight performance are required.
Product Overview
The PPS slotted countersunk screw is engineered for demanding environments where conventional plastics or metal fasteners may fail due to heat, chemicals, or electrical constraints. Its countersunk head design ensures a smooth surface finish after installation, improving safety and assembly compactness.
This PPS slotted countersunk screw offers excellent resistance to heat deformation and chemical attack, making it suitable for continuous-use industrial environments. Unlike metal screws, it does not rust, conduct electricity, or suffer from galvanic corrosion.
As a specialized industrial fastener, it is widely used in OEM manufacturing, automotive electronics, and precision equipment where stability and cost efficiency are important.
Product Specifications
| Item | Description |
|---|---|
| Product Name | PPS Slotted Countersunk Screw |
| Material | PPS (Polyphenylene Sulfide) |
| Head Type | Countersunk (Flat Head 90°) |
| Drive Type | Slotted |
| Thread Type | Metric / UNC / Custom |
| Diameter Range | M2–M12 |
| Length Range | 4mm–80mm |
| Color | Black / Natural |
| Density | ~1.35 g/cm³ |
| Operating Temperature | -40°C to 200°C |
| Electrical Properties | Good insulation |
| Chemical Resistance | Excellent resistance to acids, oils, fuels |
| Packaging | Anti-static bag / carton / OEM packaging |
| Customization | Size, thread, color available |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | ~80–110 MPa (reinforced grades higher) |
| Flexural Strength | High rigidity performance |
| Hardness | Shore D 85–90 |
| Continuous Service Temperature | Up to 200°C |
| Melting Point | ~280–285°C |
| Dielectric Strength | Good insulation performance |
| Water Absorption | Very low |
| Chemical Resistance | Excellent resistance to fuels, acids, solvents |
Materials and Manufacturing Process
The PPS slotted countersunk screw is manufactured using precision polymer processing technology to ensure stable performance and dimensional accuracy.
- Raw material selection: High-quality PPS resin (reinforced or unreinforced)
- Injection molding / CNC machining: Formation of countersunk head structure
- Thread forming: Precision molded or machined threads
- Annealing treatment: Improves dimensional stability and reduces internal stress
- Surface finishing: Optional polishing for precision assemblies
- Inspection: Dimensional and mechanical testing
- Cleaning: Contamination-free processing for industrial applications
- Packaging: Anti-static and moisture-protected packaging
Each PPS slotted countersunk screw is produced under strict quality control standards to ensure consistency in industrial performance.
Applications of the Product
The PPS slotted countersunk screw is widely used across multiple industrial sectors:
- Automotive industry: Engine compartments and electronic modules
- Electronics industry: PCB assemblies and insulating structures
- Electrical systems: High-temperature insulating components
- Industrial equipment: Chemical-resistant machinery assemblies
- Aerospace applications: Lightweight non-metallic fastening systems
- Pump and valve systems: Corrosion-resistant connections
- Household appliances: Heat-resistant internal assemblies
- Chemical industry: Equipment exposed to aggressive media
Its high heat resistance and chemical stability make it suitable for demanding engineering environments.
Why Choose This Product
- Excellent heat resistance up to 200°C
- Superior chemical resistance against fuels and acids
- High rigidity and dimensional stability
- Lightweight structure reduces system weight
- Good electrical insulation performance
- Non-corrosive and non-metallic material
- Suitable for OEM mass production
- Cost-effective engineering plastic solution
- Stable performance under long-term use
The PPS slotted countersunk screw provides a reliable balance between performance, cost, and durability in industrial applications.
Why Choose Flybear
Flybear is a professional manufacturer specializing in industrial fasteners and advanced engineering plastic components.
- Precision molding and machining capabilities
- OEM/ODM customization support
- Stable mass production for industrial supply
- Strict quality inspection system
- Global export experience
- Engineering application support
Flybear supports OEM manufacturers, distributors, and industrial engineering companies with reliable fastening solutions.
Quality Inspection and Control
Quality assurance is strictly implemented throughout production:
- Raw material performance testing
- Dimensional accuracy inspection
- Tensile and flexural strength testing
- Thermal resistance verification
- Chemical resistance evaluation
- Thread gauge inspection
- Surface quality control
- Packaging integrity inspection
All processes follow ISO-based quality management standards to ensure consistent performance.
Selection Guide
When selecting a PPS slotted countersunk screw, consider:
- Operating temperature requirements
- Chemical exposure conditions
- Mechanical load requirements
- Electrical insulation needs
- Thread size and length
- Installation environment
Proper selection ensures stable performance and long service life.
FAQ
1. What is PPS material?
PPS is a high-performance engineering plastic with excellent heat and chemical resistance.
2. Can PPS screws replace metal screws?
Yes, in applications requiring insulation, corrosion resistance, and weight reduction.
3. What is the temperature resistance of PPS screws?
They can typically withstand continuous use up to 200°C.
4. Is PPS resistant to chemicals?
Yes, PPS has excellent resistance to fuels, acids, and solvents.
5. Can custom sizes be produced?
Yes, Flybear supports full customization of dimensions and specifications.
