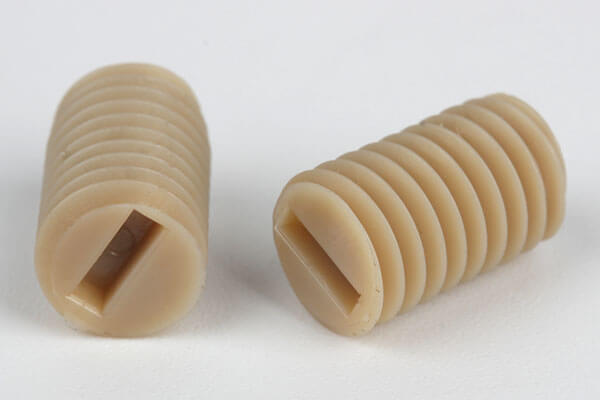

PEEK Grub Screw
PEEK grub screw is a high-performance non-metallic fastening component designed for precision adjustment, locking, and positioning applications in advanced industrial assemblies. The PEEK grub screw is manufactured from polyether ether ketone (PEEK), a premium engineering thermoplastic known for excellent chemical resistance, electrical insulation, and high-temperature stability.
The PEEK grub screw (also called a set screw) has no external head and is fully threaded, allowing it to be installed flush or recessed within a tapped hole. It is widely used in semiconductor equipment, medical devices, electronics, and precision instrumentation where metal fasteners may cause corrosion, magnetic interference, or electrical conductivity issues.
Product Overview
The PEEK grub screw is engineered for applications requiring secure internal fastening without protruding heads. It is commonly used for locking components in place, adjusting mechanical positions, and securing delicate assemblies.
This PEEK grub screw performs exceptionally well in corrosive, high-temperature, and electrically sensitive environments. Unlike metal set screws, it eliminates risks of rust, galvanic corrosion, and electrical shorting, making it ideal for high-end engineering systems.
As a specialized industrial fastener, it supports OEM manufacturers who require lightweight, non-conductive, and chemically stable fastening solutions.
Product Specifications
| Item | Description |
|---|---|
| Product Name | PEEK Grub Screw (Set Screw) |
| Material | PEEK (Polyether Ether Ketone) |
| Head Type | Headless (Grub / Set Screw) |
| Drive Type | Slotted / Hex Socket (optional) |
| Thread Type | Metric / UNC / Custom |
| Diameter Range | M2–M12 |
| Length Range | 3mm–50mm |
| Color | Natural Beige / Black (optional) |
| Density | ~1.30 g/cm³ |
| Operating Temperature | -50°C to 260°C |
| Electrical Properties | Excellent insulation |
| Chemical Resistance | Excellent resistance to acids and solvents |
| Packaging | Anti-static bag / carton / OEM packaging |
| Customization | Drive type, size, color available |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | ~90–100 MPa |
| Compressive Strength | High for precision locking applications |
| Hardness | Shore D 85–88 |
| Continuous Service Temperature | Up to 260°C |
| Melting Point | ~343°C |
| Dielectric Strength | Excellent insulation performance |
| Water Absorption | <0.1% |
| Chemical Resistance | Strong resistance to acids, bases, oils, solvents |
Materials and Manufacturing Process
The PEEK grub screw is manufactured using high-precision polymer processing techniques to ensure stable performance and dimensional accuracy.
- Raw material selection: High-purity PEEK resin
- Injection molding / CNC machining: Formation of cylindrical screw body
- Thread forming: Precision internal thread machining or molding
- Drive machining: Slotted or hex socket formation (if required)
- Annealing treatment: Improves dimensional stability
- Surface finishing: Optional polishing for precision applications
- Inspection: Dimensional, torque, and mechanical testing
- Cleaning: Contamination-free processing for sensitive industries
- Packaging: Anti-static and moisture-controlled packaging
Each PEEK grub screw is produced under strict quality control standards to ensure consistent industrial reliability.
Applications of the Product
The PEEK grub screw is widely used across advanced industrial sectors:
- Semiconductor equipment: Wafer alignment and positioning systems
- Medical devices: Imaging and surgical equipment
- Aerospace engineering: Lightweight and insulated assemblies
- Electronics industry: PCB and enclosure fastening systems
- Precision instruments: Optical and measuring devices
- Chemical processing: Corrosion-resistant equipment
- Automation systems: Fine adjustment mechanisms
- Laboratory equipment: Analytical instrumentation
Its non-metallic structure makes it ideal for environments requiring insulation and contamination control.
Why Choose This Product
- Excellent high-temperature resistance up to 260°C
- Superior chemical and corrosion resistance
- Non-conductive and non-magnetic material
- Lightweight design reduces system mass
- Ideal for precision locking and adjustment
- No rust or galvanic corrosion risk
- Stable dimensional performance under load
- OEM customization available
- Suitable for high-end industrial systems
The PEEK grub screw provides a reliable solution for precision fastening in advanced engineering applications.
Why Choose Flybear
Flybear is a professional manufacturer specializing in industrial fasteners and advanced polymer fastening components.
- Precision CNC and molding capabilities
- OEM/ODM customization support
- Stable production for industrial-scale supply
- Strict quality inspection and testing systems
- Global export experience
- Engineering support for application design
Flybear serves OEM manufacturers, distributors, and engineering companies with reliable fastening solutions.
Quality Inspection and Control
Quality assurance is strictly implemented throughout production:
- Raw material purity testing
- Dimensional accuracy inspection
- Torque and mechanical strength testing
- Thermal resistance verification
- Chemical resistance evaluation
- Thread gauge inspection
- Surface quality control
- Packaging integrity inspection
All processes follow ISO-based quality management systems to ensure consistent performance.
Selection Guide
When selecting a PEEK grub screw, consider:
- Drive type requirement (slotted or hex socket)
- Thread size and length
- Operating temperature conditions
- Chemical exposure environment
- Load and torque requirements
- Installation precision requirements
Proper selection ensures optimal performance and long service life.
FAQ
1. What is a PEEK grub screw used for?
It is used for internal locking, adjustment, and positioning in precision assemblies.
2. Does it replace metal set screws?
Yes, in applications requiring insulation, corrosion resistance, or lightweight design.
3. Can it withstand high temperatures?
Yes, it can operate continuously up to 260°C.
4. Is it electrically conductive?
No, PEEK is an excellent electrical insulator.
5. Can custom specifications be made?
Yes, Flybear supports full customization.
