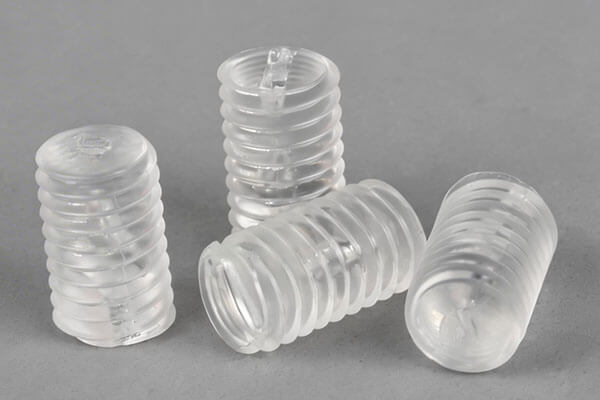

PC Slotted Flat Point Set Screw
PC slotted flat point set screw is a lightweight engineering plastic fastening component made from polycarbonate (PC), designed for positioning, locking, and adjustment applications in corrosion-sensitive and electrically insulated assemblies. The PC slotted flat point set screw features a flat end tip and a slotted drive, allowing controlled tightening using a screwdriver while applying uniform contact pressure on mating surfaces.
The PC slotted flat point set screw is widely used in electronics, optical devices, precision instruments, plastic assemblies, and lightweight mechanical systems where metal set screws may cause corrosion, electrical conductivity, or surface damage.
Product Overview
The PC slotted flat point set screw is engineered for non-metallic locking applications requiring stable positioning and controlled axial force. Its flat point design ensures even contact with the mating surface, reducing damage while maintaining secure fixation.
This PC slotted flat point set screw is commonly used in delicate assemblies where alignment and adjustment are required without damaging the contact material. Polycarbonate material provides excellent impact resistance and dimensional stability.
As a reliable industrial plastic fastener, it is widely used in OEM manufacturing and precision engineering systems.
Product Specifications
| Item | Description |
|---|---|
| Product Name | PC Slotted Flat Point Set Screw |
| Material | Polycarbonate (PC) |
| Head Type | Headless Set Screw |
| Drive Type | Slotted |
| Tip Type | Flat Point |
| Thread Type | Metric Machine Thread |
| Diameter Range | M3–M12 |
| Length Range | 4mm–60mm |
| Color | Transparent / Black / Custom |
| Density | ~1.20 g/cm³ |
| Electrical Conductivity | Non-conductive |
| Packaging | Bag / carton / OEM packaging |
| Customization | Size, color, tip shape available |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | 55–70 MPa |
| Impact Resistance | Excellent (high toughness) |
| Heat Resistance | Up to 120°C |
| Chemical Resistance | Good (mild acids, oils) |
| Electrical Insulation | Excellent |
| Water Absorption | Low |
| Dimensional Stability | Good |
| Manufacturing Standard | Industrial OEM specification |
Materials and Manufacturing Process
The PC slotted flat point set screw is manufactured using precision injection molding and controlled processing technology to ensure stability and accuracy.
- Raw material selection: High-grade polycarbonate resin
- Drying process: Moisture control before molding
- Injection molding: Formation of set screw body
- Slotted drive forming: Integrated mold design
- Flat point tip forming: Precision mold shaping
- Thread forming: Molded or secondary processed threads
- Cooling and stabilization: Ensures dimensional accuracy
- Trimming: Removal of flash and excess material
- Inspection: Dimensional and functional testing
- Packaging: Clean and protective packaging
Each PC slotted flat point set screw is produced under strict quality control for consistent industrial performance.
Applications of the Product
PC slotted flat point set screws are widely used in:
- Electronics: Positioning inside housings and modules
- Optical equipment: Alignment and adjustment systems
- Precision instruments: Non-metallic locking mechanisms
- Medical devices: Corrosion-free internal assemblies
- Industrial automation: Lightweight adjustment systems
- Plastic assemblies: Positioning and fixation components
- Consumer electronics: Internal structural locking
Their non-metallic structure makes them ideal for sensitive environments.
Why Choose This Product
- Non-conductive polycarbonate material
- Flat point design for controlled surface contact
- Lightweight and corrosion-free structure
- High impact resistance compared to PP and PVC
- Suitable for precision positioning applications
- Heat resistance up to 120°C
- Ideal for electronic and optical assemblies
- OEM customization available
- Stable performance in industrial environments
The PC slotted flat point set screw provides reliable positioning and adjustment in modern engineering systems.
Why Choose Flybear
Flybear is a professional manufacturer specializing in industrial fasteners and engineering plastic components for global OEM applications.
- Advanced injection molding capability
- Stable mass production for industrial supply chains
- Custom engineering support for plastic fasteners
- Strict quality inspection and control systems
- Global export experience in fastener manufacturing
- Technical consultation for material selection
Flybear delivers reliable fastening solutions for electronics, precision instruments, and industrial plastic applications worldwide.
Quality Inspection and Control
Strict quality control ensures stable product performance:
- Raw material resin testing
- Dimensional accuracy inspection
- Tip geometry verification (flat point)
- Mechanical strength testing
- Heat resistance validation
- Thread fit testing
- Surface quality inspection
- Packaging verification
All processes follow ISO-based quality management standards.
Selection Guide
When selecting PC slotted flat point set screws, consider:
- Required positioning force
- Contact surface material
- Temperature environment
- Chemical exposure conditions
- Electrical insulation needs
- Size and thread specifications
Proper selection ensures accurate and stable performance.
FAQ
1. What is a PC set screw used for?
It is used for positioning and locking components in plastic and precision assemblies.
2. What is a flat point set screw?
It has a flat tip that provides even pressure without damaging surfaces.
3. Is PC stronger than PVC or PP?
Yes, PC has higher strength and impact resistance.
4. Can it be used in electronics?
Yes, it is non-conductive and widely used in electronic systems.
5. Can custom designs be made?
Yes, Flybear supports full customization.
