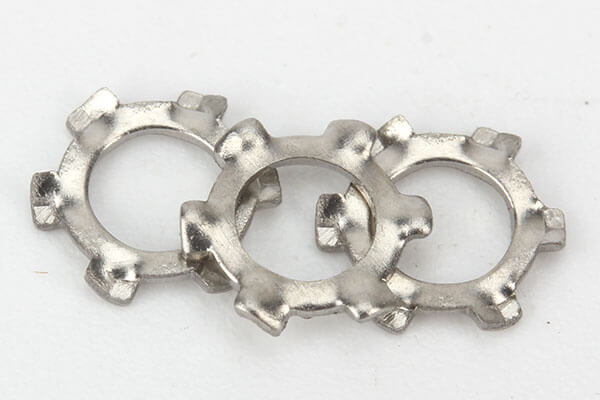

DIN6797-A External Tooth Lock Washer
DIN6797-A external tooth lock washer is a reliable locking component designed to improve fastening stability and prevent loosening in bolted connections. The DIN6797-A external tooth lock washer features external radial teeth that bite into the contact surfaces of the fastener and assembly part, increasing resistance against rotation caused by vibration and dynamic loads.
Manufactured from spring steel, stainless steel, or other suitable materials, the DIN6797-A external tooth lock washer provides excellent elasticity, reliable locking performance, and versatile application options. It is widely used in machinery, electrical equipment, automotive assemblies, industrial systems, and general mechanical fastening applications.
Product Overview
The DIN6797-A external tooth lock washer is engineered for applications requiring improved resistance against bolt and nut loosening. Its outer serrated teeth create a mechanical locking effect by gripping the underside of the fastener head or nut and the assembly surface.
Compared with standard flat washers, the DIN6797-A external tooth lock washer provides additional locking capability without requiring complex installation procedures. The external tooth design is especially suitable for applications where the washer needs to engage with larger bearing surfaces.
This washer is commonly selected by OEM manufacturers, equipment builders, and industrial suppliers requiring dependable fastening accessories.
Product Specifications
| Item | Description |
|---|---|
| Standard | DIN6797-A |
| Product Name | External Tooth Lock Washer |
| Material | Spring Steel / Stainless Steel |
| Washer Type | External Serrated Lock Washer |
| Tooth Type | External Radial Teeth |
| Material Options | Carbon Steel / 304 / 316 Stainless Steel |
| Size Range | M2–M24 |
| Inner Diameter | According to DIN6797-A Standard |
| Outer Diameter | According to DIN6797-A Standard |
| Surface Finish | Zinc Plated / Black Oxide / Natural Stainless Steel |
| Installation Type | Bolt and Nut Assembly |
| Packaging | Bulk / Carton / OEM Packaging |
| Customization | Size, material, finish available |
Technical Parameters
| Parameter | Value |
|---|---|
| Material Grade | Spring Steel / Stainless Steel |
| Tensile Strength | According to selected material grade |
| Hardness | Controlled for locking performance |
| Elastic Recovery | Excellent |
| Fatigue Resistance | Good |
| Locking Performance | Enhanced by external teeth |
| Corrosion Resistance | Depends on material and coating |
| Manufacturing Standard | DIN6797-A |
Materials and Manufacturing Process
The DIN6797-A external tooth lock washer is manufactured through precision stamping and forming processes to achieve accurate tooth geometry and stable locking performance.
- Raw material selection: High-quality spring steel strip or stainless steel strip
- Precision stamping: Formation of washer profile and external teeth
- Tooth forming: Ensures uniform serration height and locking effect
- Heat treatment: Improves hardness, elasticity, and fatigue resistance
- Surface finishing: Zinc plating, black oxide, or stainless steel passivation
- Inspection: Tooth profile, dimensions, hardness, and surface quality testing
- Packaging: Protective industrial packaging for transportation
Each DIN6797-A external tooth lock washer is produced under strict quality control to ensure consistent performance.
Applications of the Product
The DIN6797-A external tooth lock washer is widely used across multiple industries:
- Electrical equipment: Grounding and panel fastening applications
- Automotive industry: Vehicle component assemblies
- Machinery manufacturing: Mechanical equipment connections
- Industrial automation: Control systems and machine structures
- Electronics industry: Compact fastening applications
- Construction equipment: General mechanical joints
- Manufacturing systems: Standard threaded connections
- OEM products: Customized assembly solutions
Its external tooth structure provides effective locking performance in many general fastening applications.
Why Choose This Product
- DIN6797-A standard compatibility
- External teeth improve locking performance
- Helps prevent fastener rotation
- Available in steel and stainless steel materials
- Suitable for vibration applications
- Easy installation with standard fasteners
- Cost-effective locking solution
- Multiple surface treatments available
- OEM customization support
The DIN6797-A external tooth lock washer provides a practical solution for improving bolted joint reliability.
Why Choose Flybear
Flybear is a professional manufacturer specializing in industrial fasteners and customized fastening solutions.
- Advanced stamping and forming capability
- Experience with locking washer production
- Support for carbon steel and stainless steel materials
- OEM/ODM customization support
- Stable production capacity for industrial supply
- Strict quality inspection procedures
- Global export experience
- Engineering support for customized requirements
Flybear provides reliable fastening products for distributors, OEM manufacturers, and industrial customers worldwide.
Quality Inspection and Control
Quality assurance is maintained throughout the production process:
- Raw material chemical composition analysis
- Material certificate verification
- Washer dimension inspection
- Tooth profile inspection
- Hardness testing
- Elastic performance testing
- Surface coating inspection
- Packaging quality verification
All manufacturing processes follow ISO-based quality management systems to ensure consistent product reliability.
Selection Guide
When selecting a DIN6797-A external tooth lock washer, consider:
- Bolt diameter compatibility
- Required locking force
- Vibration conditions
- Installation space
- Corrosion environment
- Fastener material compatibility
Proper selection improves fastening reliability and extends assembly service life.
FAQ
1. What is DIN6797-A external tooth lock washer used for?
It is used to prevent bolt and nut loosening by increasing resistance against rotation.
2. How do external tooth lock washers work?
The external teeth grip the fastener and assembly surface to create a mechanical locking effect.
3. What materials are available for DIN6797-A washers?
Common materials include spring steel, carbon steel, 304 stainless steel, and 316 stainless steel.
4. Can DIN6797-A washers be customized?
Yes, Flybear supports customized sizes, materials, finishes, and packaging.
5. Are external tooth washers suitable for vibration applications?
Yes, they are commonly used in general vibration and dynamic load fastening applications.
