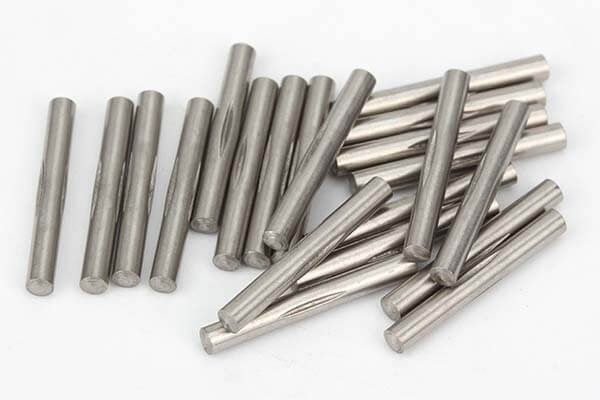

DIN1475 Slotted Dowel Pin
DIN1475 slotted dowel pin is a precision locating and fastening component designed for accurate positioning, alignment, and secure assembly in industrial applications. The DIN1475 slotted dowel pin features a longitudinal slot along the cylindrical body, allowing elastic compression during installation and providing reliable interference fit performance.
Manufactured from 303 stainless steel, the DIN1475 slotted dowel pin offers excellent machinability, dimensional accuracy, and corrosion resistance. It is widely used in machinery, automation equipment, tooling systems, and precision mechanical assemblies where repeatable positioning and stable connection are required.
Product Overview
The DIN1475 slotted dowel pin is engineered for applications requiring accurate component alignment and secure positioning. Its slotted design allows the pin diameter to compress slightly during insertion, creating a spring-like retention force inside the hole.
This DIN1475 slotted dowel pin provides a practical alternative to solid dowel pins in applications where installation flexibility and vibration resistance are important. The 303 stainless steel material offers good corrosion resistance and excellent machining performance, making it suitable for precision manufacturing environments.
As a reliable industrial fastener, it is widely used by OEM manufacturers, machinery builders, and engineering companies for assembly positioning solutions.
Product Specifications
| Item | Description |
|---|---|
| Standard | DIN1475 |
| Product Name | DIN1475 Slotted Dowel Pin |
| Material | 303 Stainless Steel |
| Pin Type | Slotted Dowel Pin |
| Shape | Cylindrical Pin with Longitudinal Slot |
| Diameter Range | 1.5mm–25mm |
| Length Range | 5mm–100mm |
| Surface Finish | Natural Stainless Steel |
| Hardness | According to material condition and size |
| Installation Type | Press Fit / Interference Fit |
| Packaging | Bulk / Carton / OEM Packaging |
| Customization | Diameter, length, material available |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | Approx. 500–700 MPa (depending on condition) |
| Yield Strength | According to stainless steel condition |
| Hardness | Typically HRB range suitable for precision machining |
| Density | ~7.93 g/cm³ |
| Corrosion Resistance | Good stainless steel corrosion resistance |
| Operating Temperature | Suitable for general industrial environments |
| Dimensional Tolerance | DIN1475 Standard |
| Manufacturing Standard | DIN1475 |
Materials and Manufacturing Process
The DIN1475 slotted dowel pin is manufactured using precision stainless steel processing technology to ensure accurate dimensions and consistent spring performance.
- Raw material selection: High-quality 303 stainless steel wire or bar stock
- Cutting: Precision cutting according to required length
- Cold forming or machining: Creation of cylindrical pin structure
- Slot machining: Accurate longitudinal slot forming
- Deburring: Removal of sharp edges for safe installation
- Surface finishing: Maintaining natural stainless steel surface
- Inspection: Diameter, length, slot size, and dimensional checks
- Packaging: Protective industrial packaging for transportation
Each DIN1475 slotted dowel pin is manufactured under strict quality control to ensure reliable positioning performance.
Applications of the Product
The DIN1475 slotted dowel pin is widely used across various industries:
- Machinery manufacturing: Component alignment and positioning
- Automation equipment: Precision fixture and tooling systems
- Automotive industry: Mechanical assembly positioning
- Industrial equipment: Structural alignment components
- Mold and die manufacturing: Tool positioning systems
- Electronics equipment: Precision mechanism assemblies
- Robotics systems: Repeatable mechanical positioning
- Manufacturing fixtures: Assembly and inspection tooling
Its elastic slot design makes it especially suitable for applications requiring secure fitting and easy installation.
Why Choose This Product
- DIN1475 standard compatibility
- Precision positioning performance
- Elastic slot design for secure fitting
- 303 stainless steel corrosion resistance
- Excellent machinability and dimensional accuracy
- Suitable for automated assembly systems
- Reliable vibration resistance
- Available for OEM customization
- Stable performance in industrial applications
The DIN1475 slotted dowel pin provides an efficient solution for precision alignment and mechanical retention.
Why Choose Flybear
Flybear is a professional manufacturer specializing in precision industrial fasteners and customized fastening solutions.
- Advanced machining and forming capabilities
- OEM/ODM customization support
- Stable production for bulk industrial orders
- Strict quality inspection systems
- Global export experience
- Engineering support for application requirements
Flybear supplies reliable fastening components for distributors, OEM manufacturers, and industrial equipment producers.
Quality Inspection and Control
Quality control is maintained throughout the entire manufacturing process:
- Raw material chemical composition analysis
- Diameter and length measurement
- Slot dimension inspection
- Hardness testing
- Surface quality inspection
- Dimensional tolerance verification
- Batch consistency inspection
- Packaging quality inspection
All processes follow ISO-based quality management systems to ensure reliable product performance.
Selection Guide
When selecting a DIN1475 slotted dowel pin, consider:
- Required pin diameter and length
- Hole tolerance and installation method
- Load and positioning requirements
- Operating environment
- Corrosion exposure conditions
- Assembly frequency and maintenance needs
Proper selection ensures secure positioning and long-term assembly reliability.
FAQ
1. What is DIN1475 slotted dowel pin used for?
It is used for component positioning, alignment, and mechanical retention in industrial assemblies.
2. Why does the pin have a slot?
The slot allows elastic compression during installation and improves holding performance.
3. Is 303 stainless steel corrosion resistant?
Yes, 303 stainless steel provides good corrosion resistance and excellent machinability.
4. Can DIN1475 pins be customized?
Yes, custom diameters, lengths, and specifications are available.
5. What is the difference between a slotted pin and a solid dowel pin?
A slotted pin offers elastic flexibility, while a solid dowel pin provides rigid positioning.
